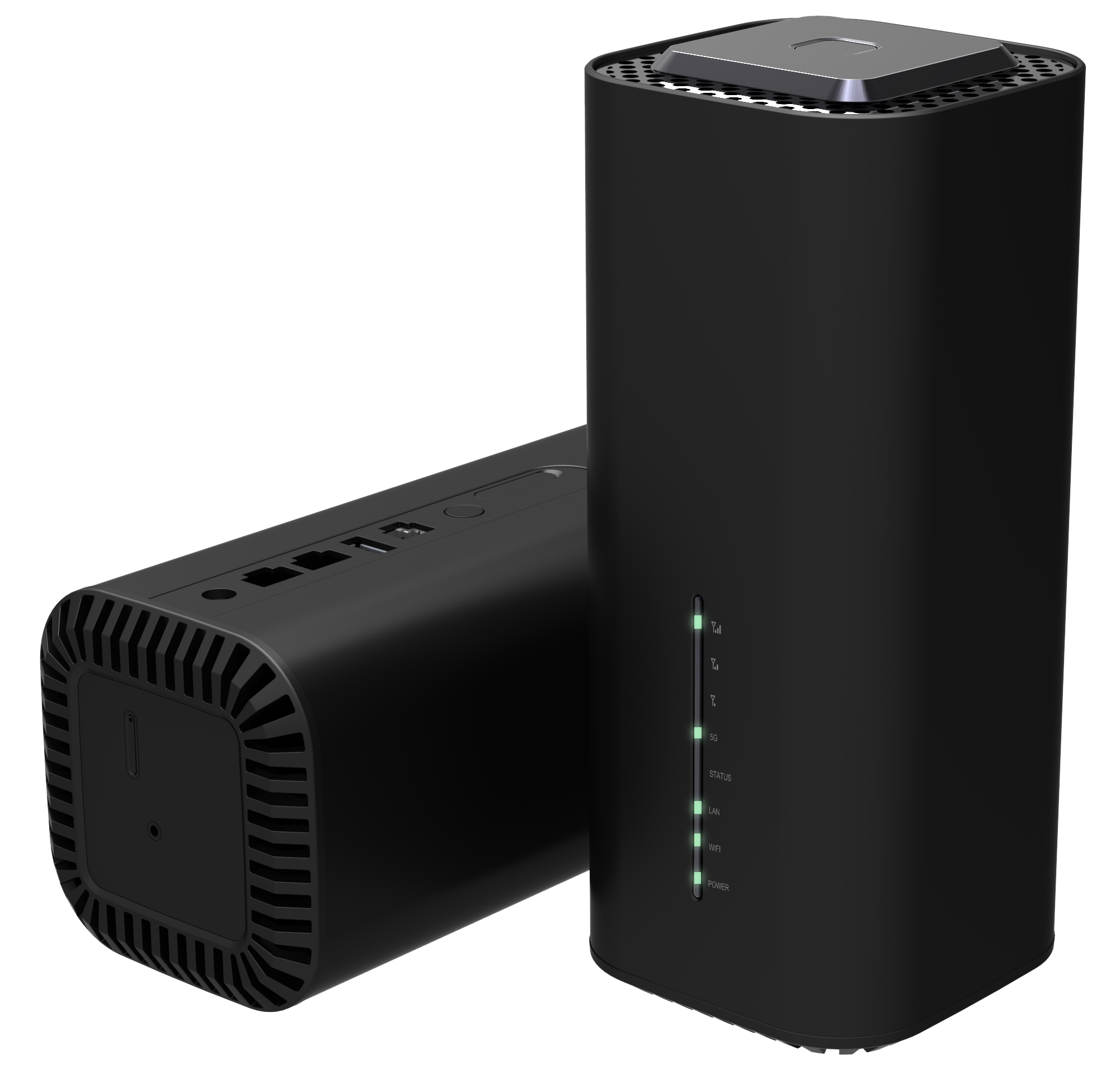

GC100 CPE

GC100 CPE

  • Cool techs design style
  • Black and low key
  • Mysterious luxury
  • Support both wired and wireless access
  • 2.4G and 5G WiFi Free Choice
  • Simple and convenient operation

Application scenario

Specifications

5G CPE Specifications

Chipset

Qualcomm X55 + MT7621A(MIPS1004Kc) + MT7985 + MT7975

Color

Black

Dimension

92 x 92 x 218 mm

Bands

5G NRn41/n77/n78/n79

LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32

LTE-TDD: B34/B38/B39/B40/B41/B42

Wi-Fi

2.4G:802.11 a/b/g/n/ac

5G:802.11 a/b/g/n/ac

Up to 64 simultaneous access users

DL/UL peak rate

5G NR Sub6

DL 3.4 Gbps; UL 200Mbps

LTE Advanced

DL 2.0 Gbps; UL 150Mbps

HSPA+

DL 42 Mbps; UL 5.76Mbps

ethernet

10Gbps

WIFI

802.11 b/g/n600Mbps 802.a11 ac1.7Gbps

Hardware

Adaptor

AC:100V240V / DC:12V/2A

LED

Power/Battery Status Indicator

5G Network Status Indicator

WIFI Status Indicator

New SMS Indicator

Status indicator

Signal strength indicator

antenna

2.4G2*2MIMO5G2*2MIMOSub 6G:4*4 MIMO

interface

Nano-SIM card 1*Wan/Lan(support 10/100/1000Mbps 1*Lan1000M 2*5G antenna expansion interfacesCRC9 1*USB3.0

Button

1*power1*reset1*WPS

Software

UI

WEB UIMobile web UI

update

FOTA & Local

SMS

Support reminder

TRO69

Optional

APP

Support

Other

Firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN Tunnel / VPN Penetration, IP Penetration, Only IPv6 and IPv6/IPv4 dual stack, Multi-APN, Administrator maintenance, Etc.

Support for OS

Win XPVista(32bit/64bit)WIN7(32bit/64bit)WIN8WIN10

Mac OS X10.6 and above

Android
