Category 5G Products

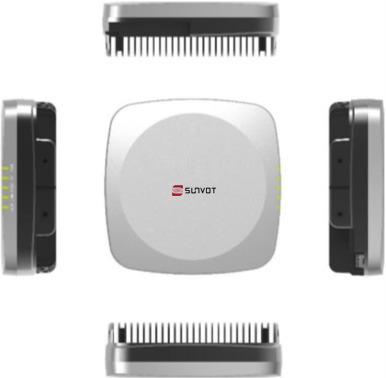

• All-in-one design, built-in baseband and RF unit
• Supports both Ethernet and SFP backhaul
• Self-Organized Network Plug & Play

•

•

•

•

Specifications：

• Outdoor Open RAN Base Station
  • BBU is easy to integrate with O-RU by open interface
  • Standard SCF FAPI is used as L2 and High-PHY interface, which is easy for communication service providers/system integrators to flexibly choose their own protocol stacks.
• O-RAN Compliant OAM
  • Touchless site integration on cloud-based platform,  with support of remote operation and maintenance, saving OPEX.
  • Real-time alarms and rich system information for automatic system inspections.

• Support open RAN:  more market competition, lower equipment costs, and improved network performance.
• Support optical backhaul interface connected to the 5G Core.

Specifications：

• 5G High Tier ODU
• Qualcomm SDX72/75
• 3GPP Release 17
• 5G FR1/FR2(option)
• SUNVOT AI Assitant

OU750 Specifications：

Main Chips	Qualcomm SDX72/75 , Sub6, mmWave(option)
5G Mode/Band	3GPP R17, NSA/SA FR1: N2/5/7/12/13/14/25/26/29/30/38/48/66/70/71/ 77/ 78 , 300MHz FR2: N257/258/260/261(Option), 800MHz
5G MIMO	High/Middle Bands are 4×4 DL MIMO, Low Bands are DL 2×2 MIMO
LTE Mode/Band	3GPP Release 14, FDD/TDD, DL Cat20/UL Cat18,B2/5/7/12/13/14/25/26/29/30/38/41/42/43/46/48/66/71
4G MIMO	High/Middle Bands are 4×4 DL MIMO, Low Bands are DL 2×2 MIMO
Peak Speed	5G-FR1: DL 8Gbps / UL 1Gbps; 5G-FR2: DL 10Gbps / UL 3.7Gbps 4G LTE: DL 2Gbps / UL 200Mbps
LED Indicator	6 LED Indicators
Connector	1* RJ45 2.5Gbps ETH Port, PoE Power Supply, SIM Card Slot (4FF), eSIM optional
Button	1*Reset
Software	APN, DHCP, DNS, SIM Lock, VPN, SSID setting, Firewall setting
Management	Web UI/TR069 Management/FOTA
Size	286 x 168 x 50mm
Quotation

• 5G High Tier Indoor CPE
• Qualcomm SDX72
• 3GPP Release 17
• WiFi7 BE18680(4X4 MIMO)

GC750 Specifications：

Main Chips	Qualcomm SDX72, Qualcomm QFW7114+QFW7124
5G Mode/Band	3GPP R17, NSA/SA FR1: N2/5/7/12/13/14/25/26/29/30/38/48/66/70/71/77/78, 300MHz
5G MIMO	High/Middle Bands are 4×4 DL MIMO, Low Bands are DL 2×2 MIMO
LTE Mode/Band	3GPP Release 14, FDD/TDD, DL Cat20/UL Cat18 B2/5/7/12/13/14/25/26/29/30/38/41/42/43/46/48/66/71
4G MIMO	High/Middle Bands are 4×4 DL MIMO, Low Bands are DL 2×2 MIMO
Peak Speed	5G-FR1: DL 8Gbps / UL 1Gbps 4G LTE: DL 2Gbps / UL 200Mbps
WiFi	WiFi 7, 4X4 MIMO, 2.4GHz+5GHz+6GHz, IEEE 802.11 b/g/n/ac/ax/be 2.4G 1.38Gbps(40MHz); 5G 5.8Gbps(160MHz); 6G 11.5Gbps(320MHz)
LED Indicator	6 LED Indicators
Connector	4FF SIM, 2*2.5GE Ports, 1*USB-C, 1*RJ11, 1*DC Jack
Button	1*Power, 1*WPS, 1*Reset
Software	APN, DHCP, DNS, SIM Lock, VPN, SSID setting, Firewall setting
Management	Web UI/TR069 Management/FOTA
Size	177.50*177.50*262.00(Height)mm
Quotation

TRADEMARK USAGE GUIDELINES

SUNVOT’s trademarks, service marks, trade dress, and logos (“Trademarks”) represent intellectual property rights owned by SUNVOT and as such are valued assets of SUNVOT. These Trademarks, whether registered or unregistered, must be used in accordance with these Trademark Usage Guidelines (“Guidelines”).

Any use of a SUNVOT Trademark must comply with applicable laws and requires strict compliance with these Guidelines. While in some instances wordmarks can be used without a license to truthfully convey information about SUNVOT’s products or services or compatibility therewith as long as the use does not cause confusion as to source or affiliation, any other use of a SUNVOT Trademark requires an appropriate license agreement. SUNVOT’s logo marks can never be used by third parties without express authorization by SUNVOT. Requests for a trademark license may be submitted to legal@sunvot.com Upon approval, SUNVOT will provide appropriate logo files for your use. By using any SUNVOT Trademarks, you acknowledge that SUNVOT is the sole owner of the Trademarks and agree not to interfere with SUNVOT’s rights in the Trademarks, including challenging SUNVOT’s use, registration of, or application to register such Trademarks. You agree that you will not harm, misuse, or bring into disrepute any SUNVOT Trademarks and that the goodwill, if any, derived from your use of any SUNVOT Trademarks exclusively inures to the benefit of and belongs to SUNVOT. You may not use any SUNVOT Trademarks in metatags, search fields, hidden text, or any other form that has the purpose or effect of diverting or confusing consumers without SUNVOT’s prior written permission.

Applicability of Guidelines

These Guidelines apply to SUNVOT employees, customers, licensees, consultants, authorized resellers, outside vendors, reporters, and other third parties. Note that if you are a licensee of a SUNVOT Trademark, the license agreement that you signed with SUNVOT may contain specific usage guidelines that differ from those contained within these Guidelines, and in such case you should follow those specific guidelines provided within such license agreement. If you are a licensee, but have been provided no special guidelines, then follow these Guidelines.

List of SUNVOT Trademarks

The list of SUNVOT Trademarks provided here may be updated with new information from time-to-time and without notice and should be referred to regularly. Note that the list may not be comprehensive, and the omission of a SUNVOT Trademark from the list does not represent any waiver of any intellectual property rights of SUNVOT in or to such Trademark. Other product names or trademarks, including those appearing on SUNVOT’s websites, that are not owned by SUNVOT are for identification purposes only and may be the registered or unregistered trademarks of their respective owners. No license or right is granted by SUNVOT by implication, estoppel or otherwise to any such third-party names or trademarks or to the SUNVOT Trademarks hereby. If in doubt about whether a particular name, mark or logo is a SUNVOT Trademark, or if you have any questions about the use of SUNVOT’s Trademarks, contact SUNVOT’s Legal Department for assistance.

Referring to SUNVOT Products/Services

When referring to SUNVOT products or services use the applicable Trademark and ensure that such references: (i) are truthful, fair, and not misleading; and (ii) comply with these Guidelines. Note that these Guidelines may be modified by SUNVOT from time-to-time in its sole discretion. Specifically, ensure that you: 1. follow the directives within these Guidelines;
2. use the appropriate trademark symbol and acknowledgment of SUNVOT’s ownership of the particular Trademark;
3. do not incorporate SUNVOT Trademarks into your own trademarks, service marks, logos, or company names; and
4. do not adopt marks or logos that imitate, play on, refer to, or are confusingly similar to any SUNVOT Trademarks.

Use of SUNVOT Trademarks

When using a SUNVOT Trademark, ensure that you: 1. Except in the case of slogans and taglines, ALWAYS use a Trademark as an adjective, accompanied by an appropriate generic noun that defines the relevant product or service (e.g. “SUNVOT® Outdoor CPE is an excellent product”). Do NOT use a Trademark as a noun (e.g. “SUNVOT® is an excellent product”).
2. Do NOT pluralize a Trademark or make it possessive.
3. Do NOT combine a Trademark with other words, symbols, or numbers, either as one word or with a hyphen.
4. Do NOT abbreviate or alter a Trademark.
5. Do Not change the color or typeface of a Trademark featuring a design element.
6. ALWAYS use such Trademark as an adjective, accompanied by an appropriate noun (e.g. “SUNVOT^® Outdoor CPE is an excellent product”). Do NOT use a Trademark as a noun (e.g. “SUNVOT^® is an excellent product”). Do NOT pluralize a Trademark or make it possessive. Do NOT combine a Trademark with other words, symbols, or numbers, either as one word or with a hyphen. Do NOT abbreviate a Trademark;
7. ALWAYS use the proper spelling and the proper trademark symbol (^®, ™ or ^SM as applicable). For the trademark symbol, use the superscript format, but if this is not possible, then use parentheses ((R), (TM) or (SM) as applicable) ; and

Identification of SUNVOT Trademarks

1. In letters, memos, press releases, white papers, advertising, slides, foils, video, and other multimedia presentations, ensure that you properly identify (with ®, ™ or SM as applicable) each SUNVOT Trademark at the most prominent use (often in the headline) and again in the first occurrence. For presentation graphics, each SUNVOT Trademark should be designated with the proper trademark symbol on each page, slide, and foil;
2. In newsletters, magazines, and publications containing multiple articles, properly identify each SUNVOT Trademark in the first occurrence in the Table of Contents, in headlines and in the first occurrence in every article in which it is used;
3. In brochures, financial reports, books, white papers, data sheets, technical documentation, and other bound documents, properly identify each SUNVOT Trademark in the first occurrence in the Table of Contents, in headlines, and in the first occurrence in text;
4. In all charts and graphs, properly identify each SUNVOT Trademark, as such charts and graphs could become separated, copied and used independently; and

Proper Use Examples of SUNVOT Trademarks

SUNVOT® Indoor CPE
SUNVOT ® Outdoor CPE
SUNVOT ® Dongle
SUNVOT ® Mifi;

Acknowledgement of SUNVOT Trademarks Ensure that you include a proper trademark ownership notice that identifies each SUNVOT Trademark used as being owned by NINGBO SUNVOT TECHNOLOGY CO.,LTD. (e.g. “SUNVOT® is trademark of NINGBO SUNVOT TECHNOLOGY CO.,LTD.”)

Use of “SUNVOT” as a Trademark vs. Trade name

“SUNVOT” is not only a trademark used to identify SUNVOT’s products and services; it also serves as SUNVOT’s company name. Therefore, the word “SUNVOT” is generally used in two (2) different ways: (i) as a trade name to identify NINGBO SUNVOT TECHNOLOGY CO.,LTD. the company; or (ii) as a trademark to identify its various products. “SUNVOT” is used as a trade name when NINGBO SUNVOT TECHNOLOGY CO.,LTD. the company is taking some action or referenced as having some attribute (e.g. “SUNVOT announced its earnings for this quarter”). When referenced as a trade name, there is no need to include a trademark symbol after “SUNVOT”. “SUNVOT” is used as a trademark when SUNVOT is an adjective used as a brand name for its products (e.g. “SUNVOT^® Outdoor CPE devices are aimed at mobile and consumer applications”). When referenced as a trademark, include the proper trademark symbol after “SUNVOT”.

• Qualcomm SDX62
• LTE DL CAT19
• WiFi 6,  AX1800
• Support 5G-5G CA combos

GF500+ Specifications
Main Chips	Qualcomm SDX62,  WCN6856
Size	135*72*17mm
Weight	150g
Color	Black/Green
Adapter	5V/2A
5G NR	Protocol Standard	3GPP Release 16, support 1T4R
	Operation Mode	5G NR: 3.4Gbps(DL)/900Mbps(UL);
	Frequency Band	n1/n3/n7/n8/n20/n28/n38/n41/n40/n78
LTE	Protocol Standard	3GPP Release 14
	Operation Mode	DL Cat19/UL Cat18,  1.6Gbps(DL)/200Mbps(UL)
	Frequency Band	B1/2/3/4/7/8/20/28/38/40/41
Wi-Fi	Protocol Standard	IEEE 802.11 b/g/n/ac/ax, 2.4GHz & 5GHz, AX1800
	MIMO	2X2 MIMO, 1800 Mbps
	Max Users	Max 16 Wi-Fi connections
	Security	WPA2/WPA3 authentication
User Interface	Battery	4000mAh
	LCD Display	2.4 inch QVGA
	External Port	Nano SIM ( 3FF),  Support ESIM, Type-C USB
	Buttons	Power, Reset, WPS
Software	Router	DHCP Setting, DNS Setting
	Security	IP(IPV4/IPv6), DMZ, UPnP, DNS,uPNP,NTP,DMZ,
	Device Management	Web UI Management Interfaces, Factory default setting
		FOTA/Local update

• UNISOC V510 chip
• LTE DL CAT12
• WiFi 6,  AX1800

GF500 Specifications
Main Chips	UNISOC IVY510, WCN2064
Size	135*72*17mm
Weight	150g
Color	Black/Green
Adapter	5V/2A
5G NR	Protocol Standard: 3GPP Release 15, support 2T4R, 1T4R and 1T2R base on different bands
	Operation Mode: 2T4R, SA: DL 2Gbps/UL 1Gbps; NSA: DL 2.6Gbps/UL 0.6Gbps
	Frequency Band: n1/n3/n7/n8/n20/n28/n38/n41/n77/n78
LTE	Protocol Standard: 3GPP Release 14
	Operation Mode: 1T2R, DL Cat12, 4G LTE:600Mbps(DL)/150Mbps(UL)
	Frequency Band: B1/2/3/4/7/8/20/28/38/40/41
Wi-Fi	Protocol Standard: IEEE 802.11 b/g/n/ac/ax, 2.4GHz 5GHz, AX1800
	MIMO: 2X2 MIMO, 1800 Mbps
	Max Users: Max 16 Wi-Fi connections
Security	WPA2/WPA3 authentication
	IP(IPV4/IPv6), DMZ, UPnP, DNS,uPNP,NTP,DMZ
User Interface	LCD Display: 2.4 inch QVGA
	External Port: Nano SIM ( 3FF), Support ESIM, Type-C USB
Buttons	Power, Reset, WPS
	Router: DHCP Setting, DNS Setting
Battery	4000mAh
Software	Web UI Management Interfaces, Factory default setting
	FOTA/Local update

• Qualcomm SDX62
• Support 5G R16 & LTE CAT19
• Support WiFi6 AX3000
• Support VoNR/Volte or VoIP, one of two
• Support Plume Opensync

GC700+ Specifications
Main Chipset	Qualcomm SDX62(Modem),  IPQ5018(AP)
Size	275x169x56mm 155x140x31mm
Weight	800g
Color	White
Adapter	48V/1A
5G Sub6(ODU)	Radio Access	3GPP LTE Release 16, 1T4R, 4X4 MIMO
	5G FR1 Band	n7/n38/n41/n77/n78 , 3GPP Release 16, SA/NSA
	4G LTE	B2/4/5/7/38/42/43  3GPP Release 14, DL Cat19/UL Cat18
	Data Interface	1* RJ45 2.5Gbps Eth Port, POe Supply Power
	LED Indicator	Signal Strength(3 colors), SYS, MODE, ETH,  WiFi
	SIM Support	SIM Card Slot ( 2FF), support eSIM
	Button	1* Reset Hole
	4G/5G Speed	5G NR: 3.4Gbps(DL)/900Mbps(UL); 4G LTE:1.6Gbps(DL)/200Mbps(UL)
	Antennas	4* directional antennas
Router(IDU)	WiFi	802.11 b/g/n/ac/ax, 2.4GHz & 5.8GHz, 3000Mbps, Max access 128 users.
	Ports	1* 2.5Gbps WAN Port(POe), 1*2.5Gbps LAN, 1* 1000Mbps LAN Ports, 1* RJ11 Port,  1*DC Jack
	Buttons	1*Power, 1* WPS, 1* Reset
	Antennas	2.4GHz 2×2 MIMO, 5GHz 3X3 MIMO.   5 WiFi RF ports  shared  3 antennas
Mesh Router	Optional,  802.11 b/g/n/ac/ax, AX3000
Software	Language	English, Spanish, others
	Voice	VoNR/Volte/CSFB and VoIP, can just select one of two
	Software feature	DHCP, IPv4/IPv6, firewall, SIM LOCK/PIN LOCK, DNS, Multi-APN, etc
	Device Management	CLI, Telnet, HTTP and HTTPS Management Interfaces
		Standard Based TR-069 Management, FTP and HTTP OTA Firmware Upgrade
		SNMP v1/2/3

• UNISOC 5G V510
• Support WiFi5 AC1200
• Support VoNR/Volte or VoIP, one of two

GC300 Specifications
Main Chipset	UNISOC V510(Modem),  Mediatek MT7621(AP)
Size	275x169x56mm 155x140x31mm
Weight	800g
Color	White
Adapter	48V/1A
5G sub 6(ODU)	Radio Access	3GPP LTE Release 15, 1T4R, 4X4 MIMO
	5G FR1 Band	N7/N38/N41/N77/N78, N7 support 1T4R, N38/41/77/78 support 2T4R
	4G LTE	LTE Cat13,   B2/B4/B5/B7/B28/38/B66
	Data Interface	1* RJ45 10M/100M/1000Mbps Eth Port, POe Supply Power
	LED Indicator	Signal Strength(3 colors), SYS, MODE, ETH,  WiFi
	SIM Support	SIM Card Slot ( 2FF), support eSIM
	Button	1* Reset Hole
	4G/5G Speed	5G SA: DL 2Gbps/ UL 1Gbps;  NSA: DL 2.6Gbps/UL 0.6Gbps; 4GLTE:600Mbps(DL)/150Mbps(UL)
	Antennas	6* directional antennas
Router(IDU)	WiFi	802.11 b/g/n/ac/ax, 2.4GHz & 5.8GHz, 3000Mbps, Max access 64 users.
	Ports	1* 1000Mbps WAN Port(POe), 2* 1000Mbps LAN Ports, 1* RJ11 Port,  1*DC Jack
	Buttons	1*Power, 1* WPS, 1* Reset
	Antennas	2.4GHz 2×2 MIMO, 5GHz 2X2 MIMO.    4 WiFi RF ports  shared 2 antennas
Mesh Router	Optional,  802.11 b/g/n/ac, AC1200
Software	Language	English, Spanish, others
	Voice	VoNR/Volte/CSFB and VoIP, one of two
	Software feature	DHCP, IPv4/IPv6, firewall, SIM LOCK/PIN LOCK, DNS, Multi-APN, etc
	Device Management	CLI, Telnet, HTTP and HTTPS Management Interfaces
		Standard Based TR-069 Management, FTP and HTTP OTA Firmware Upgrade
		SNMP v1/2/3
