Category 4G-CPE

LC500 CPE

By in4G Products, 4G-CPE
  • Qualcomm LTE CAT12
  • Support indoor mesh router
  • Download speed
    • 1Gbps(theoretical)
    • ~500Mbps (real network)

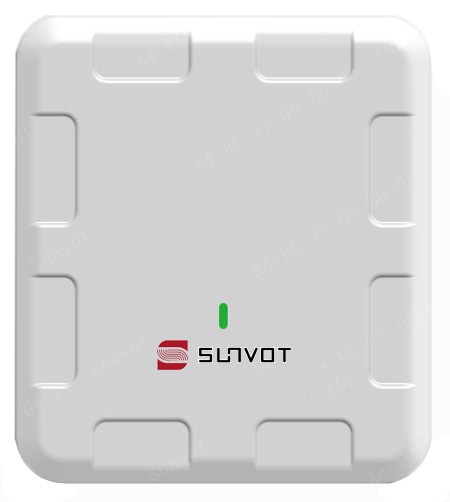

LTE CAT12(Outdoor)

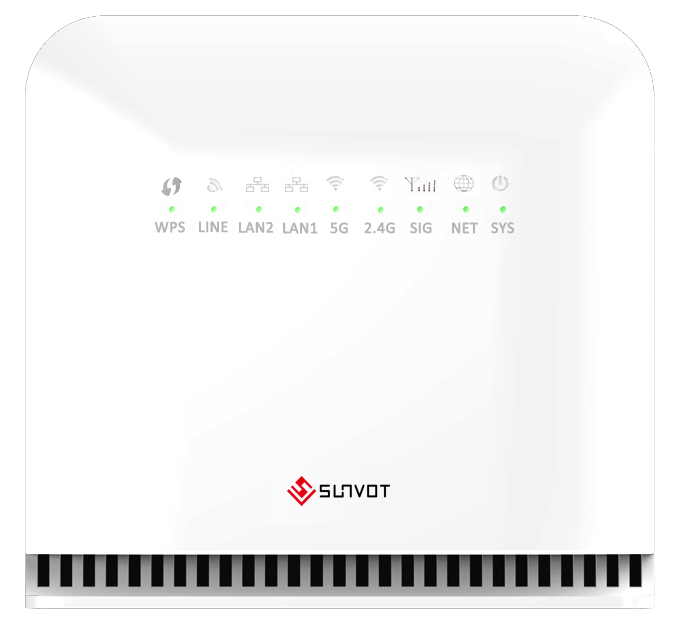

Router(Indoor)

Specifications

LC500 Specifications

Main Chipset

Qualcomm SDX12(Modem), MediaTek MT7621(AP)

Color

White

Size

260x260x53mm

Weight

1000g

Adapter

24W

4G(ODU)

Platform information

3GPP LTE Release 12, 1T4R, 4X4 MIMO, Omnidirectional Antennas

4G Bands

LTE Cat12, B2/4/5/7/12/13/17/14/25/26/28/30/38/41/42/43/66/71

3G Bands

UMTS, B 2/3/5/8

Data Interface

1* RJ45 10M/100M/1000Mbps Eth Port, PoE supply power

LED Indicator

Signal Strength (3 colors), SYS, MODE, ETH, Wi-Fi

SIM Support

SIM Card Slot (2FF)

Button

1* Reset Hole

Antennas

4* Omni directional antennas

Router (IDU)

Wi-Fi

802.11 b/g/n/ac, 2.4GHz & 5.8GHz, 1167Mbps, Max access 64 users.

Ports

1* 1000Mbps WAN Port (PoE), 2* 1000Mbps LAN Ports, 1* RJ11 Port, 1*DC Jack

Buttons

1*Power, 1* WPS, 1* Reset

Antennas

2×2 MIMO

Software

Language

English, Spanish, others

voice

SIP V2.0, VoIP voice

Software feature

DHCP, IPv4/IPv6, firewall, SIM LOCK/PIN LOCK, DNS, Multi-APN, etc.

Device Management

CLI, Telnet, HTTP and HTTPS Management Interfaces

Standard Based TR-069 Management, FTP and HTTP OTA Firmware Upgrade

Local and Remote Management



LC300 CPE

By in4G Products, 4G-CPE
  • LTE CAT12(Outdoor)+Router(Indoor)
  • lGCT LTE Cat12
  • lndoor Unit support WiFi5
  • lSupport VoIP Voice
  • lDownload speed
    • 1Gbps(theoretical)
    • ~500Mbps(real network)

LTE CAT12(Outdoor)

Router(Indoor)

Specifications

LC300 Specifications

Main Chipset

GCT GDM7243(Modem), MediaTek MT7621(AP)

Color

White

Size

164 x 56 X280mm

Weight

800g

Adapter

24W

4G(ODU)11

Radio Access

3GPP LTE Release 12, 2T4R, 4X4 MIMO

4G LTE

LTE Cat12, Band1/3/7/8/20/38/40/41/42/43

Data Interface

1* RJ45 10M/100M/1000Mbps Eth Port, Poe Supply Power

LED Indicator

Signal Strength (3 colors), SYS, MODE, ETH, Wi-Fi

SIM Support

SIM Card Slot (2FF)

Button

1* Reset Hole

4G Speed

4G LTE:600Mbps (DL)/150Mbps (UL)

Antennas

4* directional antennas

Router (IDU)

Wi-Fi

802.11 b/g/n/ac, 2.4GHz & 5.8GHz, 1.2Gbps, Max access 64 users.

Ports

1* 1000Mbps WAN Port (PoE), 2* 1000Mbps LAN Ports, 1* RJ11 Port, 1*DC Jack

Buttons

1* Power, 1* WPS, 1* Reset

Wi-Fi antennas

2×2 MIMO

Software

Language

English, Spanish, others

voice

SIP V2.0, VoIP voice

Software feature

DHCP, IPv4/IPv6, firewall, SIM LOCK/PIN LOCK, DNS, Multi-APN, etc.

Device Management

CLI, Telnet, HTTP and HTTPS Management Interfaces

Standard Based TR-069 Management, FTP and HTTP OTA Firmware Upgrade

Local and Remote Management



GC001 CPE

By in4G Products, 4G-CPE


  • Outdoor Unit


  • Indoor Unit

Specifications

Parameters

GC-001 outdoor Unit Specifications

Chip platform

Qualcomm 9X07

Form

Pair of Outdoor Unit + Indoor Unit

Dimensions

Outdoor Unit: 270 x 120 x 120 mm

Indoor Unit:  256x222x85mm

Water Tightness

Outdoor Unit: IP65

OS

Windows 10, Windows 8.1, Windows 8, Windows 7, Mac OS X 10.9, 10.8, and 10.7 with latest upgrades, Linux

Protocol Version

3GPP Release 11

Operating frequency (LTE)

TDD LTE：B38/B40/B41

FDD LTE：B1/B3/B5/B7/B8/B20/B28/B32

Operating frequency (WCDMA)

WCDMA: B2/B4/B5

Carrier Aggregation

2xCA：B2+B2/B5/B12/B13/B26/B29;
 B4+B4/B5/B12/B13/B26/B29;
 B7+B5/B7/B12/B13/B26/B29;
 B25+B5/B12/B13/B25/B26/B29;
 B30+B5/B12/B13/B26/B29;
 B66+B5/B12/B13/B26/B29/B66

Channel Bandwidth

FDD: 5MHz, 10MHz, 15MHz, 20MHz

TDD: 10MHz, 15MHz, 20MHz

Tx Power

23dBm±2dB for LTE-FDD/LTE-TDD

24dBm+1/-3dB for WCDMA

Antenna Gain

Band1: 3~4dBi

Band3: 4~5dBi

Band7/ Band38/Band40/Band41: 6~7dBi

Band8/Band20: 0~2dBi

Band42/Band43: 8~9dBi

MIMO

LTE antenna 1T/4R (TDD) and 1T/4R (FDD B3/7),1T/2R(FDD 1/8/20)

LTE Transmission mode

TM2/3/4/7/8/10

Data

LTE-FDD: Max 300Mbps (DL)/Max 50Mbps (UL)
LTE-TDD: Max 226Mbps (DL)/Max 28Mbps (UL)
DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)

Interface

1 Giga PSU LAN port (RJ45) ,10/100/1000 Mbps

1 USIM card slot (3FF)

3*10/100/1000Mbps WAN/LAN Ports

IP Networking

L2/L3 VPN / three APN / IPV4/IPv4&v6

VoIP

Codec with G.711u-law, G.729, G.711a-law

Terminal Management

TR069: SNMPv3(SNMPv3 need customization); FOTA

Name

GC-001 indoor Unit Specifications

Model

C5S

Wi-Fi Chip

MT7621DA+MT7603E+MT7613B

ROM/Flash

128/16MB

Wireless Speed

AC1200

WAN/LAN Ports

3*10/100/1000Mbps WAN/LAN Ports

Internet Protection

· Block bad websites

. Screening network fraud

. Device timed off

. Comprehensive online guard Report

. Can only work on app

Other Functions

guest network、wireless AP、Wi-Fi intensity modification、QoS、Beam-forming

Size

256x222x85mm
